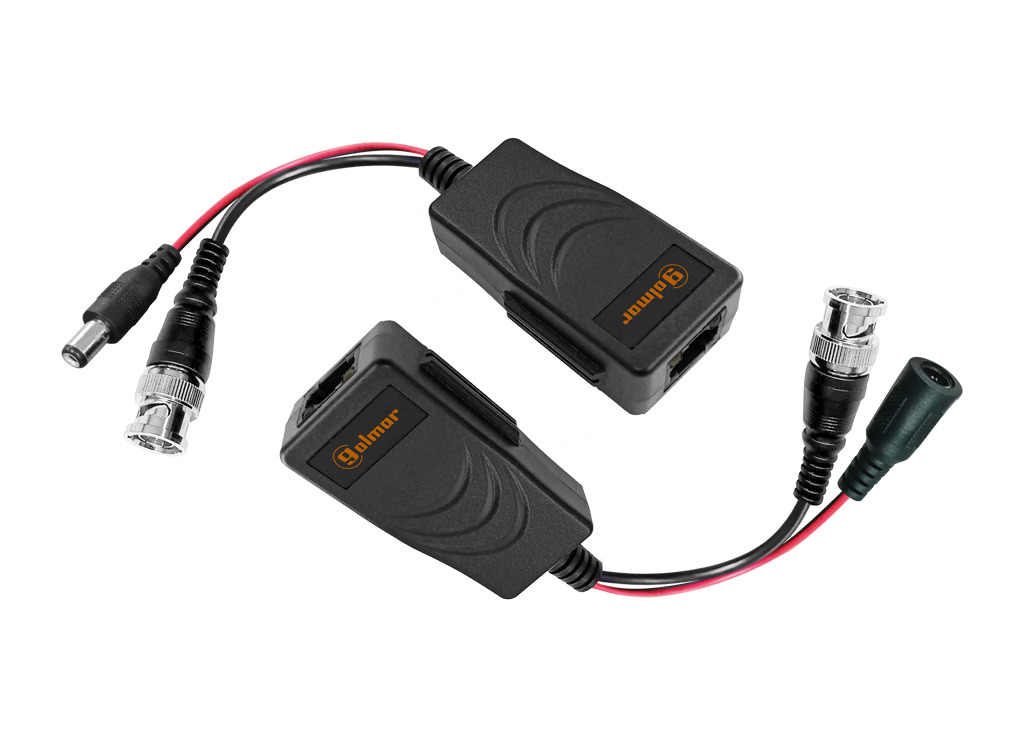

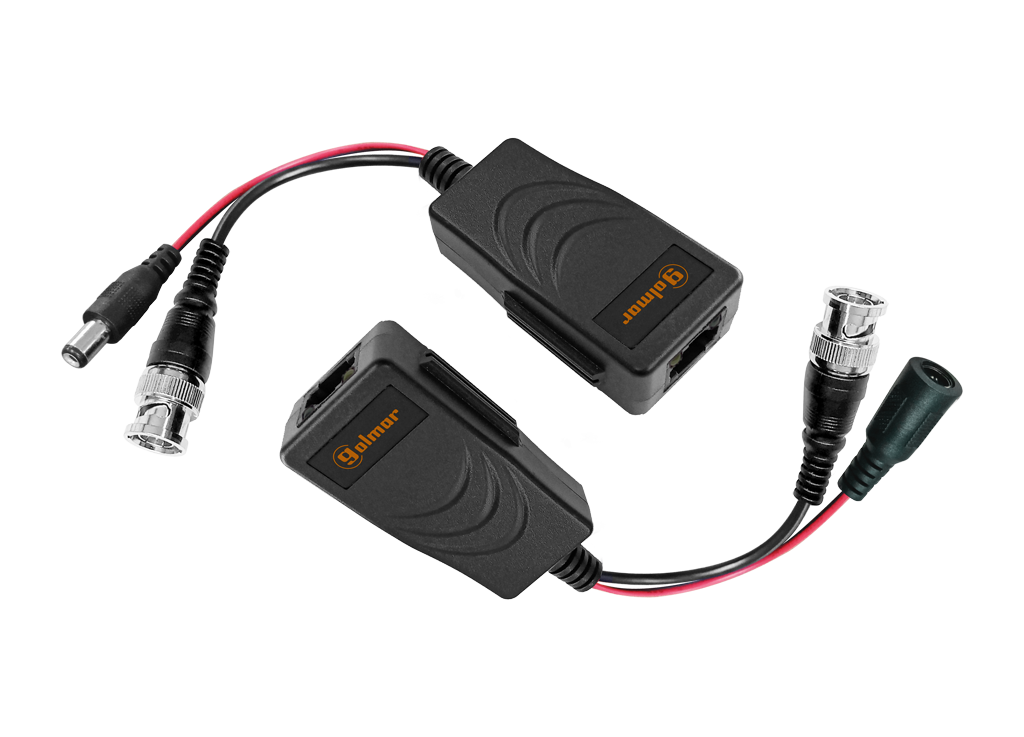

Passive UTP-701 Video Balun (video + power)

Reference : UTP-701

Product code: 31600501

EAN code : 8429898034065

  • Video and Power Balun (12 V/24 V, AC/DC)
  • Real-time transmission over UTP Cat5e/6
  • Compatible with all analog HD-TVI/CVI/AHD/CVBS cameras
  • Maximum supported resolution: 4K
  • BNC connector with mini-coaxial pigtail
  • RJ-45 connector for UTP cable
  • Built-in solid-state TVS (Transient Voltage Suppressor)
  • Wave filter design, anti-static design
  • 2KV lightning protection design
  • 60 dB common mode rejection
  • Unbalanced coaxial impedance: 75 ,
  • Balanced UTP impedance: 100 ,
  • Maximum distance 50m (check tables)
  • ABS plastic housing
  • Dimensions: 29 (W) x 20 (H) x 60 (D) mm (excluding BNC and cable)
  • Weight: 60 g

More information
Specifications
Number of elements 1
Input connector 0
Output connector 0
Max. Output power (dBm) 1
Lineal polarization 1
Compatibility 0
Number of devices that can be controlled 1
Bandwidth (Mbps) 0
Ancho de banda (Gbps) 0
Electrical protection Sobretensión
Rest consumption (W) 0
Max. consumption (W) 0
Output power (W) 1
Dimensions - High (mm) 20
Plug & Play Yes
Dimensions - Width (mm) 29
Dimensions - Deep (mm) 60
Input voltage (V) 12Vcc
Included power supply No
Weight (gr.) 60
