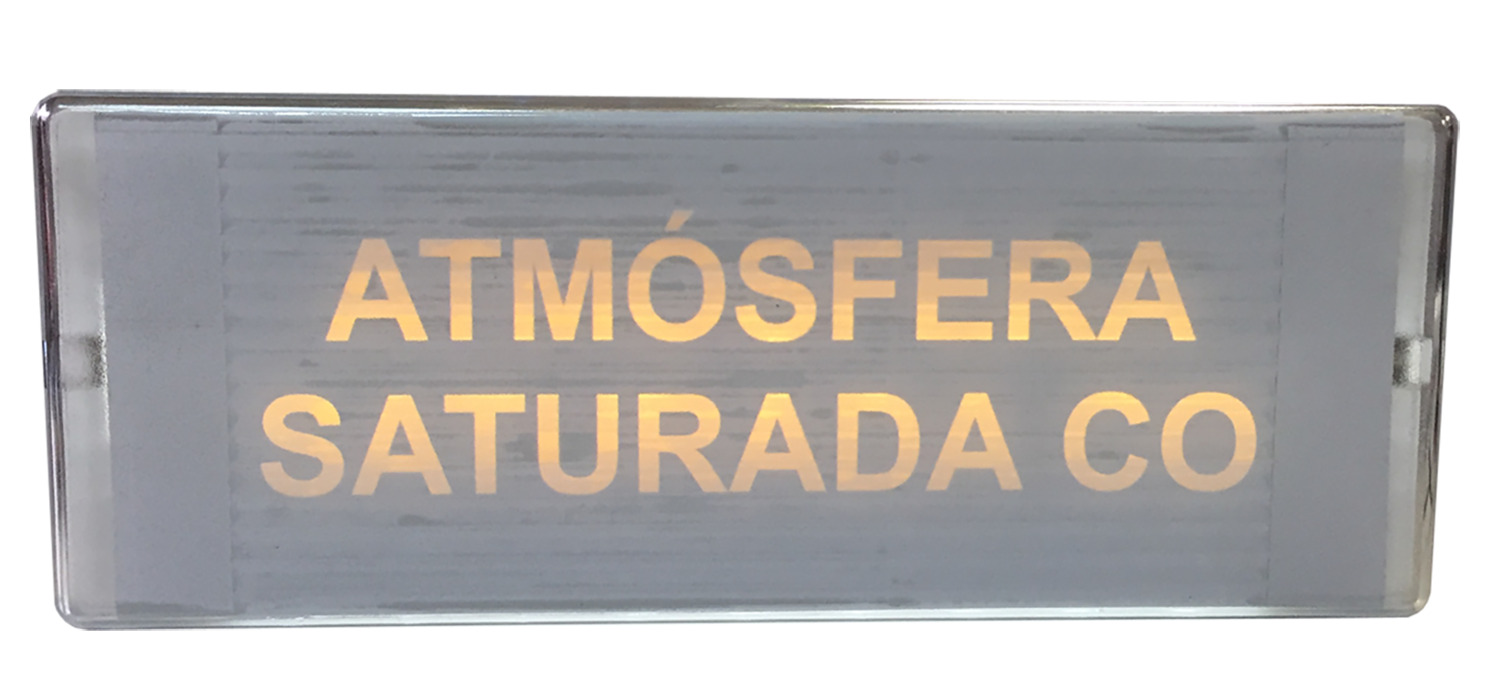

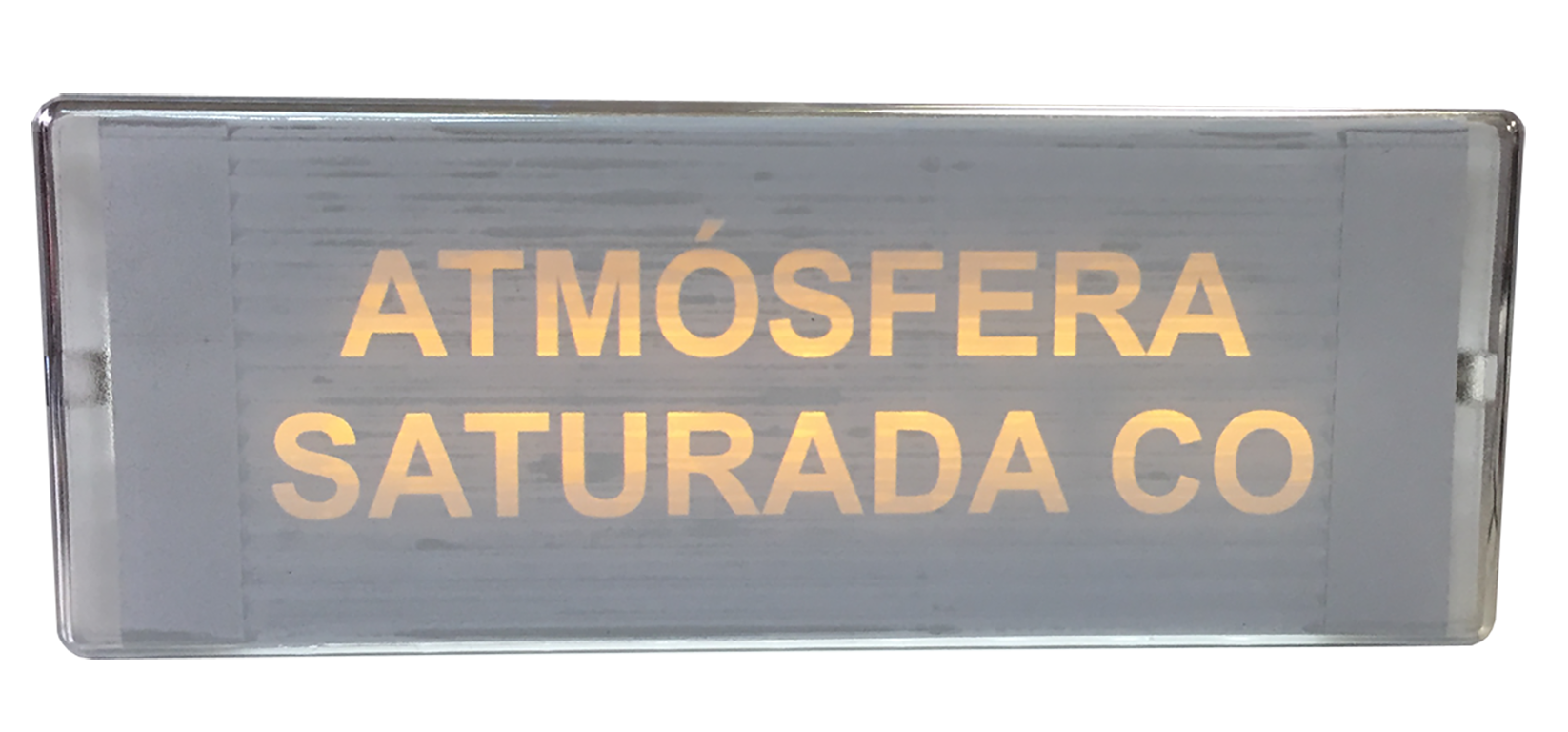

"CO Saturated Atmosphere" Sign
Reference : LET-CO
Product code: 21122997
EAN code : 8429898026398
- Certification: Compliant with EN 60598, EN 60598-2-1, EN 61547 and EN 55015
- Application: Designed for alarm signaling in CO detection systems
- Sound intensity: 80 dB at 1 meter
- Power supply voltage: 9 to 28 VDC
- Maximum consumption: 80 mA at 28 VDC
- Operating temperature: 0°C to 40°C
- Maximum relative humidity: 95%
- Weight: 340 g
- Dimensions: 262 x 100 x 51 mm
More information
| Specifications | |
|---|---|
| Installation | 2 hilos |
| Technology | Convencional |
| Serie | CCO |
| Type of activation | Por la central |
| Signaling | Óptica,Acústica |
| S.P.L. @ with maximum power (db) | 80 |
| Mounting | Pared |
| Use | Interior |
| Manufactured according to Norma. | 100 |
| Material | 2 hilos |
| Dimensions - High (mm) | 51 |
| Dimensions - Width (mm) | 262 |
| Dimensions - Deep (mm) | 100 |
| Weight (kg.) | 0.34 |
