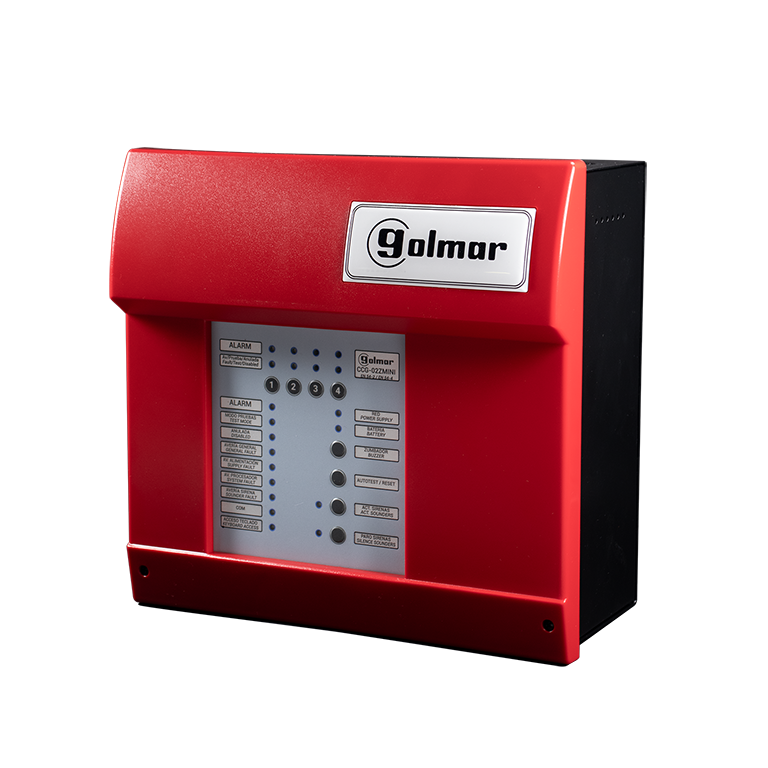

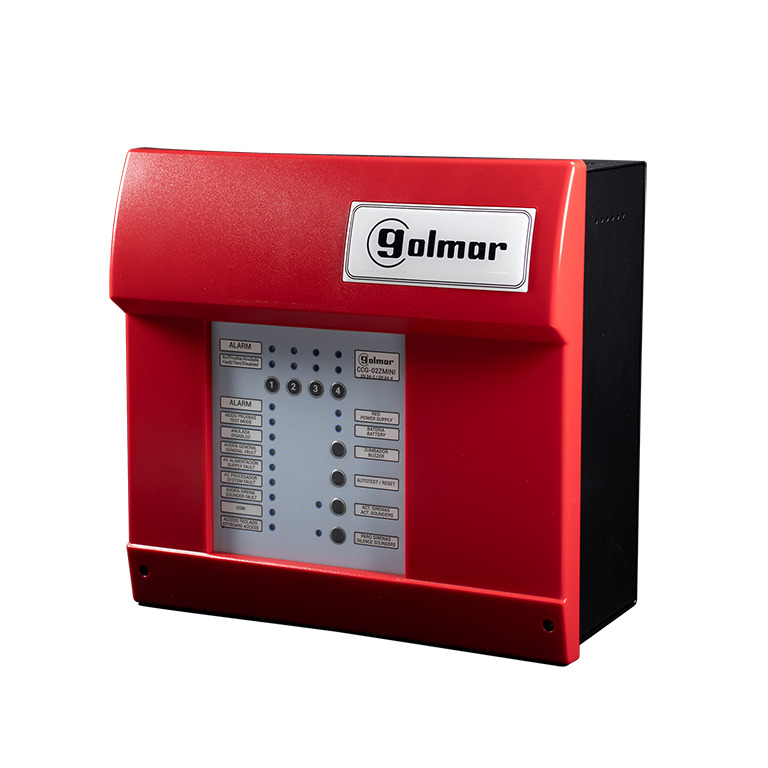

Compact conventional 2-zone control panel CCG-02ZMINI
Reference : CCG-02ZMINI
Product code: 21101031
EAN code : 8429898029405
- 2-zone control panel for use with conventional detectors and push buttons.
- Up to 32 devices (total detectors and push buttons) per zone.
- 2 supervised general siren outputs, timer adjustable from 0 to 7 minutes.
- 1 immediate alarm output via a dry contact NO/NC.
- 1 immediate fault output via a dry contact NO/NC.
- 1 supervised auxiliary output of 30 V DC.
- Operates with 2 batteries 12V/2.3Ah.
- Includes test mode.
- Certified according to EN 54-2 and EN 54-4 standards.
- CE marked.
More information
| Specifications | |
|---|---|
| Serie | CCG |
| Installation | 2-wire |
| Technology | Conventional |
| Number of zones | 2 |
| Number of zones (max.) | 2 |
| Devices Line (max.) | 32 |
| Exit relay. | 2 |
| Mermaid output. | 2 |
| Signaling | Led,Acoustically |
| Input voltage (Vac) | 230 |
| Use | Indoor |
| Dimensions - High (mm) | 240 |
| Dimensions - Width (mm) | 248 |
| Dimensions - Deep (mm) | 105 |
| Weight (kg.) | 2.2 |
