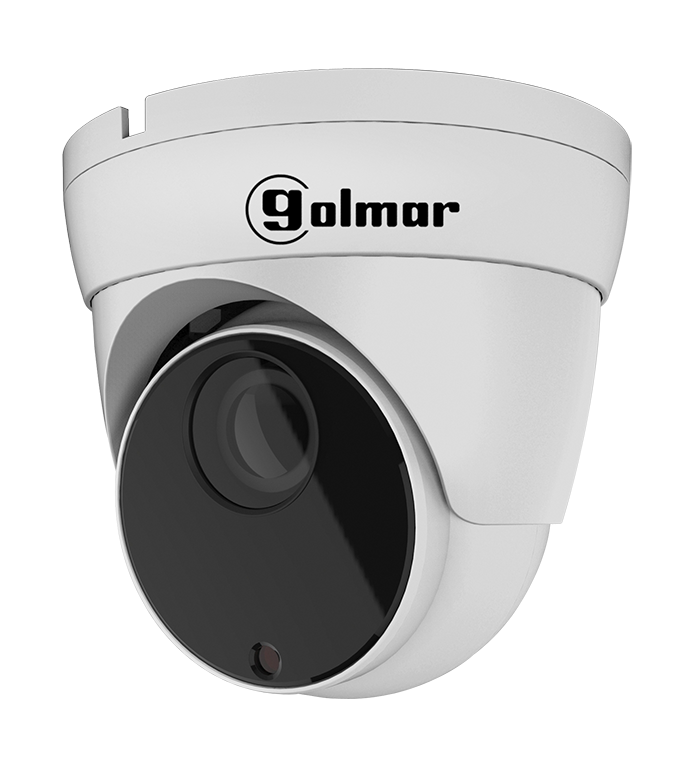

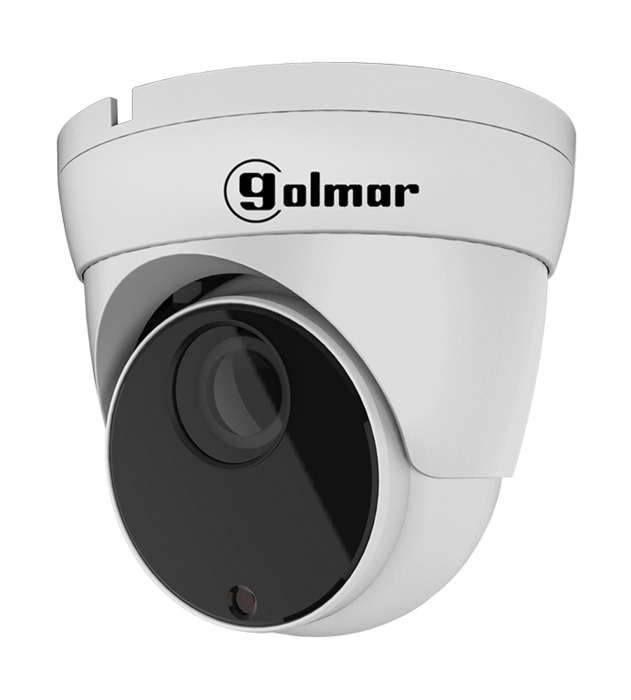

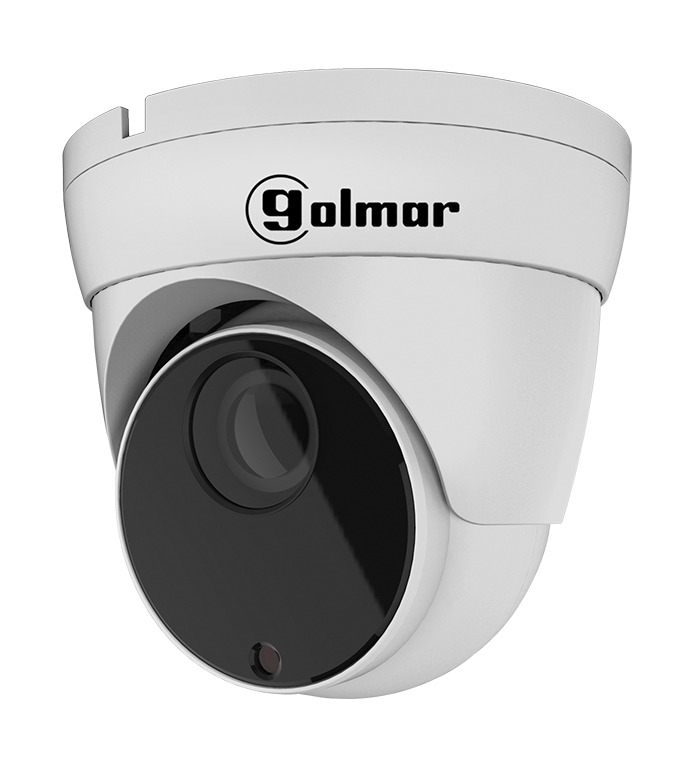

CIP-24D5MA dome IP camera with PoE video analysis, 5Mpx

Reference : CIP-24D5MA

Product code: 31691030

EAN code : 8429898018539

  • Dome with video analysis and motorized lense 5Mpx
    1/2.8" Progressive CMOS Sensor
    2.8-12mm motorized autofocus optics
    Field of view 109° - 32°
    Compression H.265 / H.264
    Owner protocol / Onvif 2.6
    Advanced video analysis (perimeter, crossing line, stationary object,
    pedestrian detection, face detection, counter)
    40 leds (SMD) / 40m
    Degree of protection IP66
    With audio terminal, reset, alarm, video output
    Dimensions 135 (Ø) x 120(P)mm
    Power supply 12Vcc / PoE

More information
Resolution 5MP  2592(H)×1944(V)
Image Sensor 1/2.8" Progressive CMOS
Min. Illumination Color 0.01lux @ F1.2(AGC ON) ;   B/W 0 lux @ IR ON
Shutter  1/5 ~ 1/20000s
Lens 2.8 ~ 12mm (Motorized) H.FOV: 109 ~ 32°
F No.  F No. W:1.6--T:2.9±5%
Day & Night IR cut filter with auto switch
WDR 120 dB
Video Compression H.265/H.264
Video bit rate 256Kbps ~ 12Mbps
Triple Stream  yes
Resolution Mainstream(default 30fps)
5MP (3072x1728)(2592x1944),
4MP(2592x1520), 3MP(2304x1296)
1080P(1920x1080), 720P(1280x720),
Substeam(default 30fps )
Mobilestream(default 10fps)
VGA(640x480), QVGA(320x240)
Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Hue adjustable
BLC Support
ROI Support
Video Analytics      Perimeter Intrusion Detection, Line Crossing Detection, Sationary Object Detection, Pedestrian Detection,Face Detection(DEEP LEARNING),Cross Counting.
System Compatibility ONVIF( Ver 2.6, Profile S, Profile G)
Interface RJ45 10M / 100M Ethernet interface x1
Led  40pcs(SMD)
IR Range Up to 40m
SD storage yes(Micro SD/SDHC/SDXC slot, up to 128 GB)
Alarm Trigger 1 input / 1 output
Audio 1 input / 1 output (RCA)
Video Output: yes
Reset Button yes
PoE yes
Water Proof IP 66
Power Supply DC 12V/POE
Consumption ≤ 9W
Dimension Ø135.4 X 86mm
Weight appr.
Storage Temperature -30~+60°C
Operating Temperature -30~+55°C
