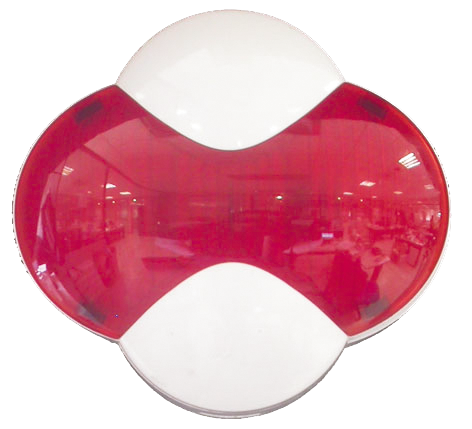

Analog and conventional action repeater
Reference : LR500
Product code: 80SR1100121
EAN code : 8033959744925
- Compatible with analog control panels: FAP500 series, FAP500EVO
- Compatible with conventional CCG control panels
- Power supply voltage: 12 to 24 VDC
- Maximum consumption: 11 mA
- Protection rating: IP40
- Weight: 30 g
- Dimensions: 66 (W) × 61 (H) × 24 (D) mm
More information
| Specifications | |
|---|---|
| Installation | 2 hilos |
| Technology | Convencional,Analógico |
| Serie | FAP500 |
| Type of activation | Por la central |
| Signaling | Óptica |
| Synchronization | Yes |
| Action indicator output | Yes |
| Mounting | Superficie |
| Use | Interior |
| Manufactured according to Norma. | 24 |
| Material | 2 hilos |
| Dimensions - High (mm) | 61 |
| Dimensions - Width (mm) | 66 |
| Dimensions - Deep (mm) | 24 |
| Weight (kg.) | 0.03 |
