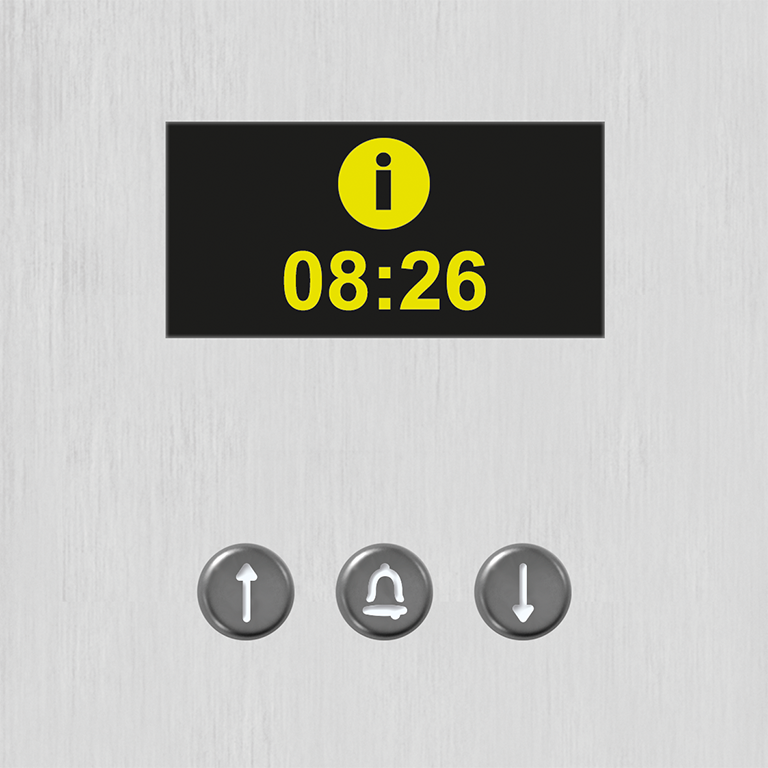

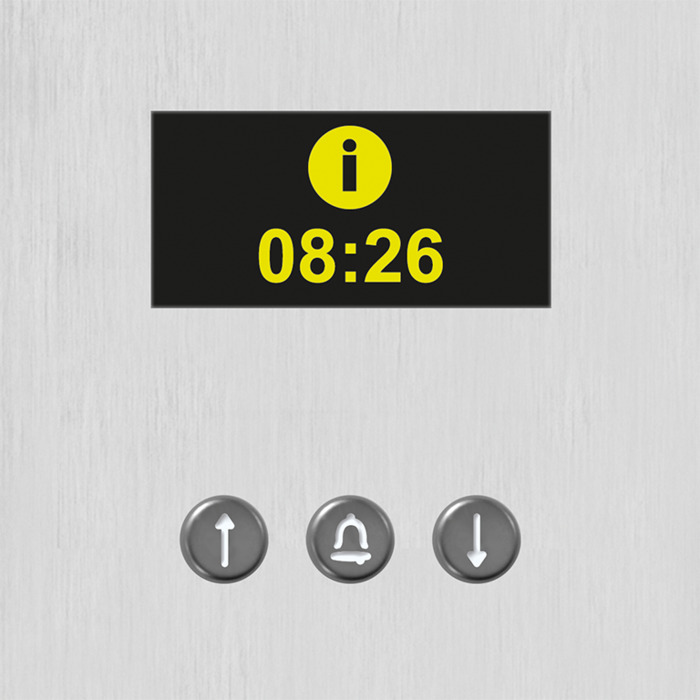

N3403/AL graphic display module
Reference : N3403/AL
Product code: 11883404
EAN code : 8429898013114
- For Nexa aluminium door panel.
- Front of 1.8mm. thick anodized extruded aluminium.
- Requires to be combined with EL632 or EL642 sound modules (except GB2 models).
- 128 x 64 dots OLED yellow display module with polycarbonate protection.
- Navigation and call buttons.
External dimensions: 100(W) x 100(H) mm.
More information
- USB port for system programming through "Memedit" software (available for Windows® and Android® based devices).
- Transmission of the repertory content to other door panels and concierge units through the installation wires.
- Selectable language.
- Programmable lock release activation time between 0 and 99 seconds.
- Cyclic messages with instructions for use, time, user text and system status are shown in the display.
- Automatic programming and code diagnostic of the apartment units.
- Possibility to assign one access code for each repertory register. Each access code can activate a different combination of relay outputs (up to three), and can be operated during one of the eight available time frames.
