• CCTV
  • Other features : Fixed lens
  • Other features : Panoramic lens
  • Resolution : 12Mpx
  • Technology : IP
  • Type of device : DOME cameras

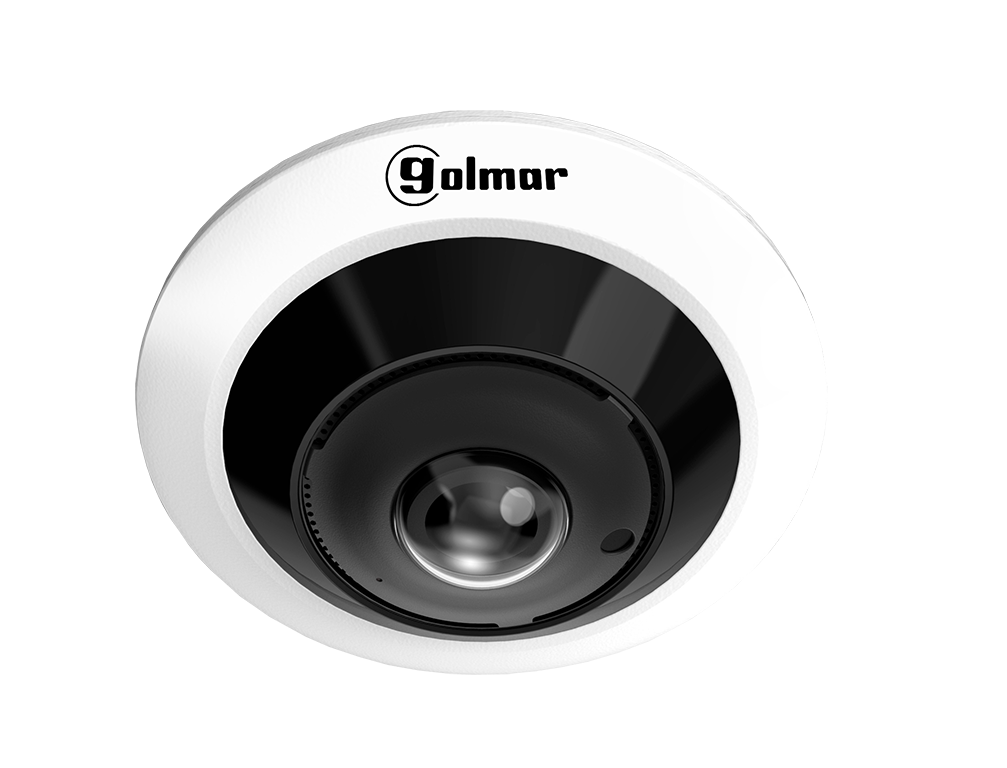

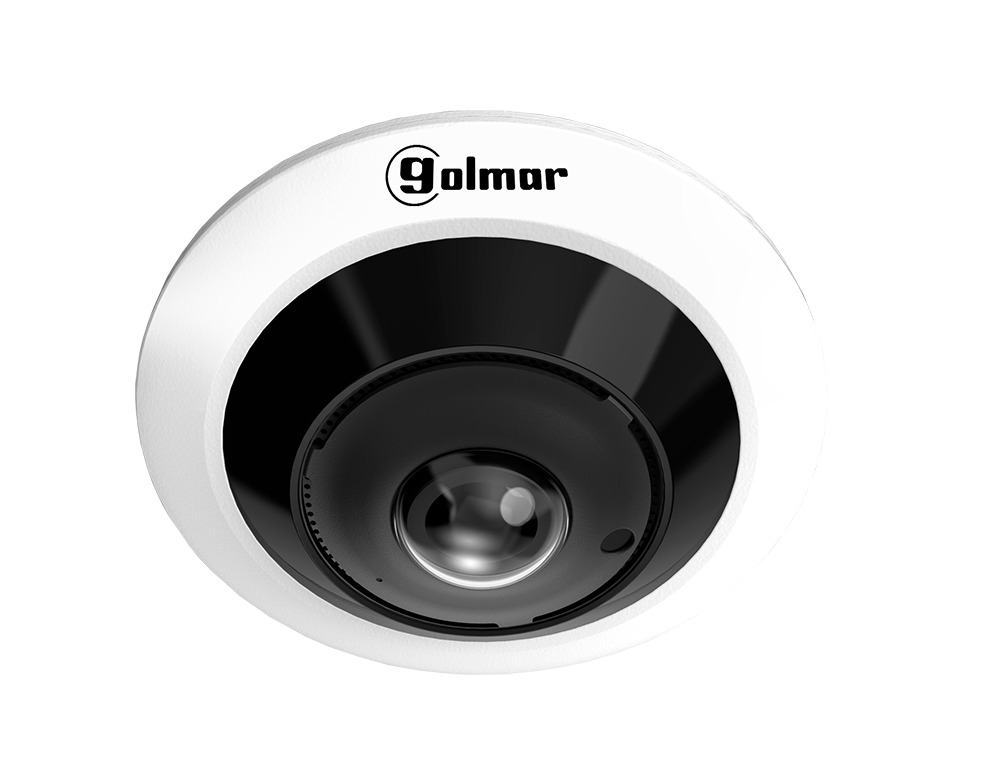

Dome IP Fisheye CIP-360F12 12Mpx with 1,6mm lense

Reference : CIP-360F12

Product code: 31600929

EAN code : 8429898025933

  • Private protocol
    Infrared illumination (3 leds)
    IP66 degree of protection
    SD card slot
    Dewarp with NVR, App or VMS Pro software
    Compatible with C-BASEF and C-BASEFS base
    Dimensions: 120(Ø) x 55(H) mm

More information
Type Dome
Technology IP
Image sensor 1/2.3" progressive CMOS
Colour White
Mounting Wall,Ceiling
Lense Fixed
Focal length 1,6mm
Horizontal field of view (º) 180
Vertical field of view (º) 180
Night vision mode Day/Night
IR distance max. (m) 5
Additional functions AWB,BLC,AES,3D-DNR,D-WDR
Bitrate 8Kbps ~ 16Mbps
Main Stream (FPS) 4000 x 3000 @ 15pfs
Sub Stream (FPS) 1280 x 960 @ 15fps
Video compression H.264,H.265
Face recognition No
Internal storage Yes (max 256Gb)
Network interface RJ45
I / O alarms 1/1
I / O audio No
Built-in microphone Yes
Built-in speaker Yes
Integrated WiFi No
Remote Access / App Web,App GolmarView,VMS Pro
Protocols ONVIF (Perfil S, G, T)
Compatibility C-BASEF and C-BASEFS
Degree of protection (IP) IP66
Material Aluminium
Maximum working temperature (ºC) 60
Minimum working temperature (ºC) -30
Relative humidity work (max.) 95
Input voltage (V) 12Vcc,PoE
Included power supply No
Max. consumption (W) 5
Dimensions - High (mm) 55
Dimensions - Diameter (mm) 120
Weight (gr.) 400
Certifications CE,RoHS
